Test procedures require that specimens are cast in a number of standard sizes convenient for compressive and flexural strength determination. The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many international standards. Moulds must not deform during manufacture of concrete specimens if the specimen dimensions are to be maintained.
STANDARD

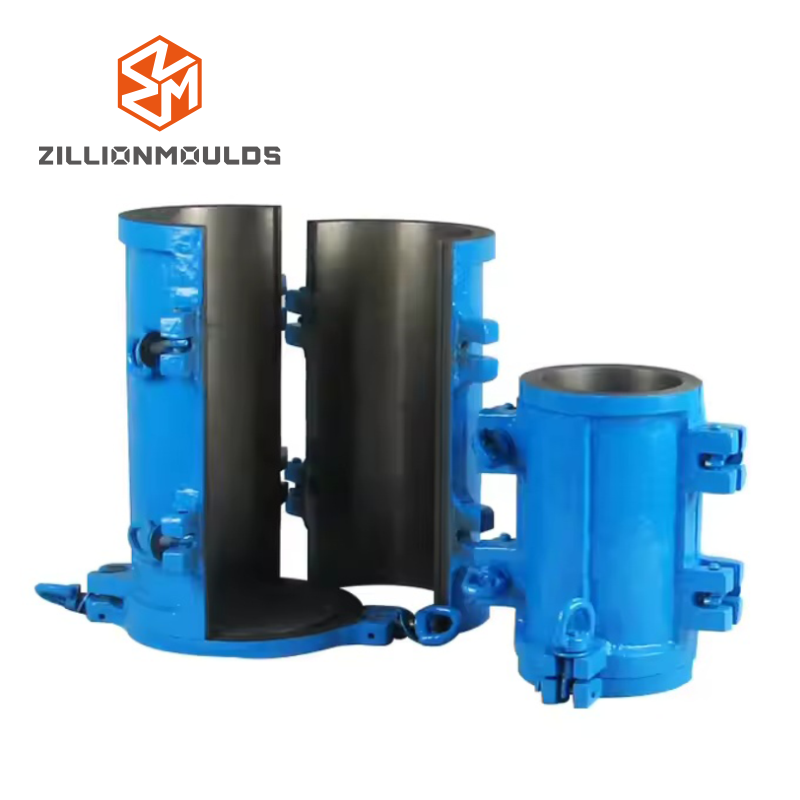

CY-MC CAST IRON CYLINDER MOULD
This type cylinder mould is made of cast iron and surface is coated black or blue and the inner surface is all grinded by the lathe. It’ s very heavy.
CY-CW STEEL CYLINDER MOULD
CY-MS STEEL CYLINDER MOULD

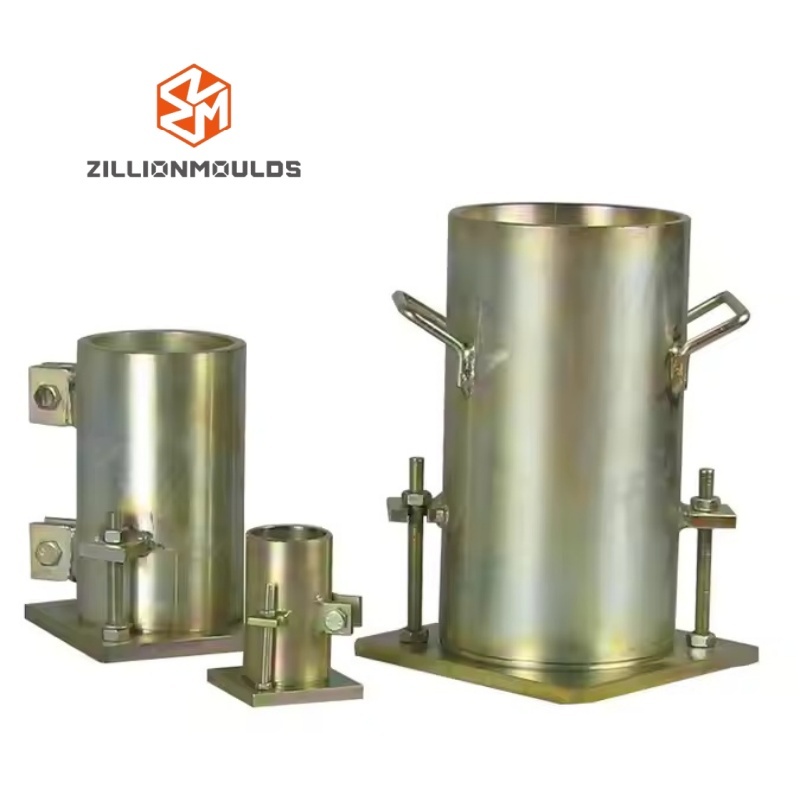

These moulds are constructed of plated steel for rust resistance and are dimensionally stable under severe use. Moulds are split along one side with 2 quick-acting clamps welded to mould. When open, mould springs apart slightly to allow specimen removal. Include detachable base plate.
CY-MP PLASTIC CYLINDER MOULD

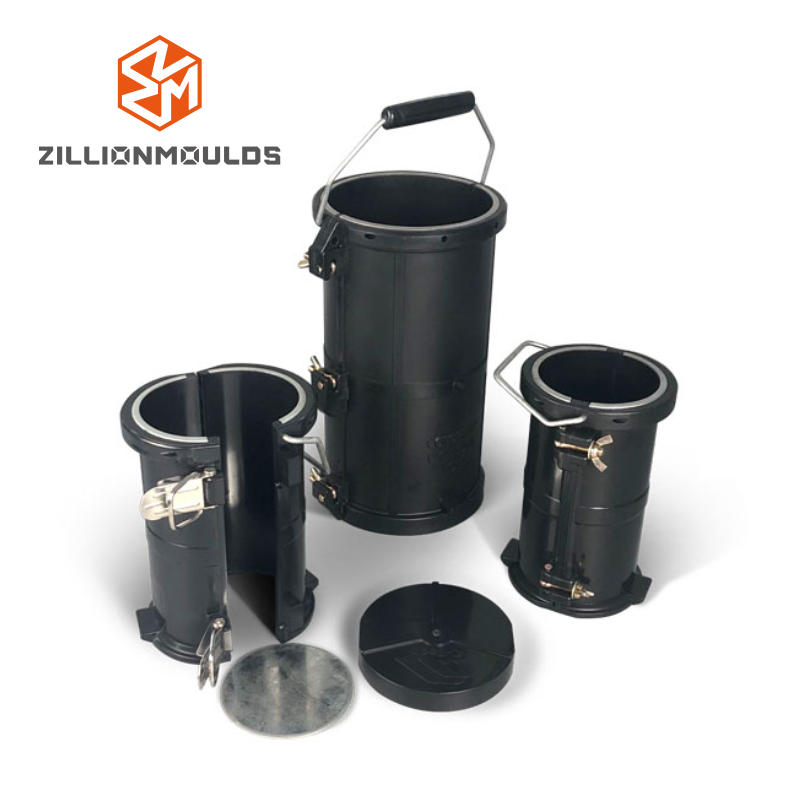

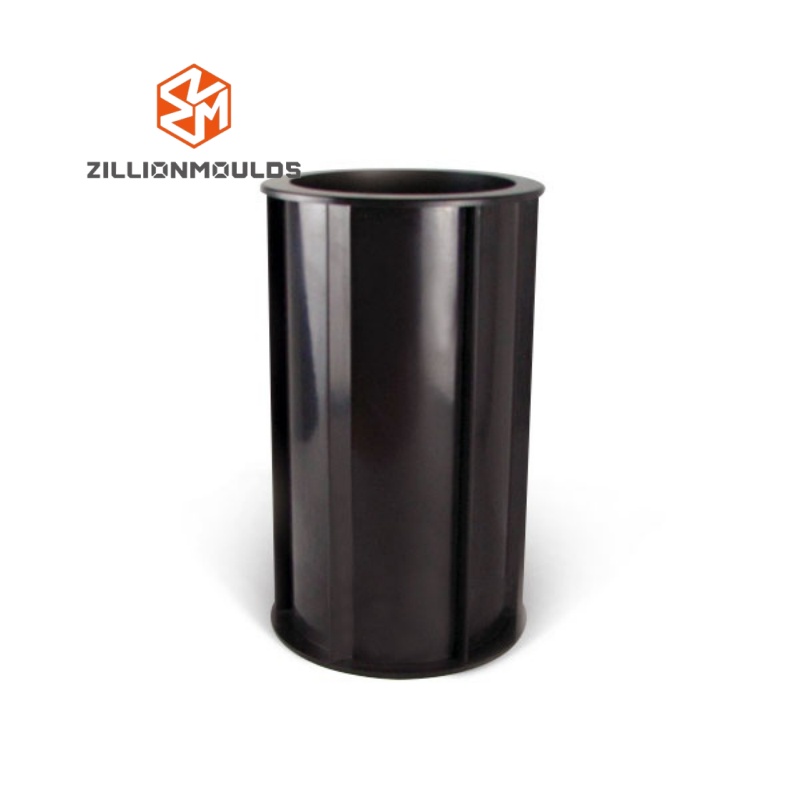

Plastic concrete test cylinder mould is reusable and sturdy in this range, it is light and easy to carry, made in collapsible-two parts for quick to install. It will not rust and easy to maintain.
CY-PP PLASTIC CYLINDER MOULD

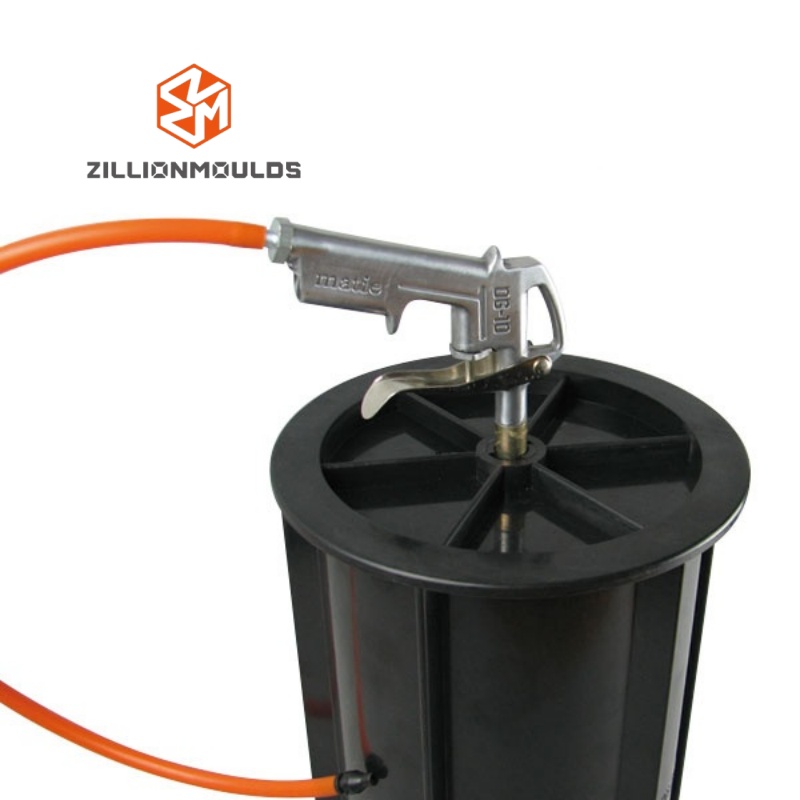

The air gun is generally used for demoulding.
CM-PU150 POLYURETHANE CYLINDER MOULD

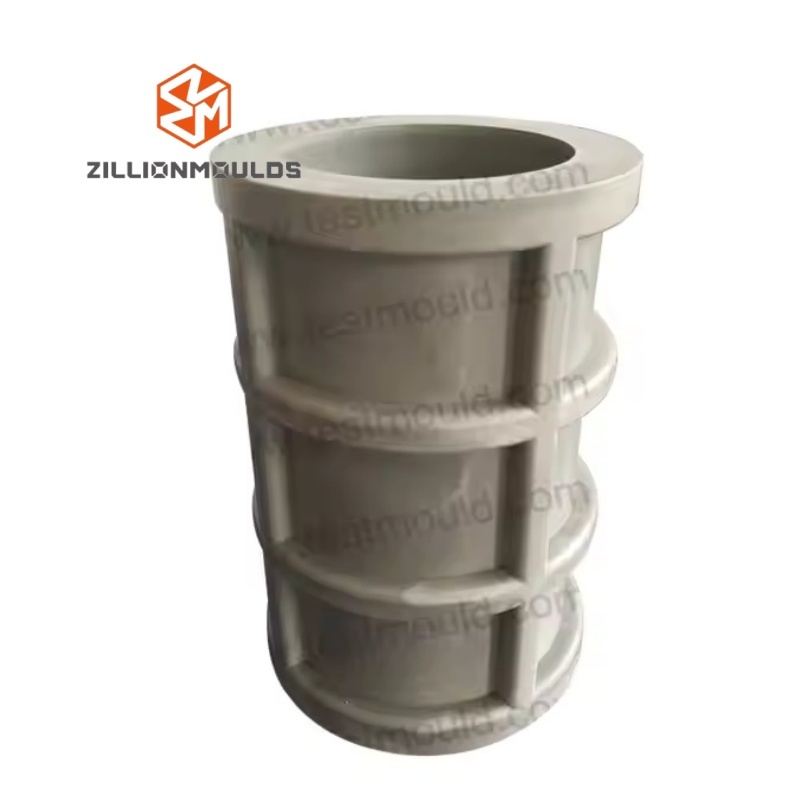

A one piece mould manufactured from a robust plastic which is resistant to shock and abrasion. Ideal for field use, the specimen is ejected from the mould by compressed air requiring only a simple clean and oiling before being ready for use again. Meets the requirements of EN 12390-1.
TECHNICAL PARAMETERS
| Model | Dimension(mm) Dia.×Height | Weight | Wall thickness |
| CY-MC CAST IRON CYLINDER MOULD |
CY-MC100 dia.100×200mm | 9kg | - |
| CY-MC150 dia.150×300mm | 17kg | - | |
| CY-MC160 dia.160×320mm | 22kg | - | |
| CY-CW STEEL CYLINDER MOULD | CY-CW100 dia.100×200mm | 9kg | 5mm |
| CY-MS STEEL CYLINDER MOULD |
CY-MS50 dia.50×100mm | 1kg | - |
| CY-MS100 dia.100×200mm | 9kg | - | |
| CY-MS150 dia.150×300mm | 16kg | - | |
| CY-MS160 dia.160×320mm | 18kg | - | |
| CY-MP PLASTIC CYLINDER MOULD | CY-MP/A(with bolt) dia.100×200mm | 0.89kg | - |
| CY-MP/B(with clip) dia.100×200mm | 0.92kg | - | |
| CY-MP/C(with bolt) dia.150×300mm | 1.76kg | - | |
| CY-PP PLASTIC CYLINDER MOULD | CY-PP150 dia.150×300mm | 1.0kg | - |
| CM-PU150 POLYURETHANE CYLINDER MOULD | CM-PU150 dia.150×300mm | 1.9kg | - |

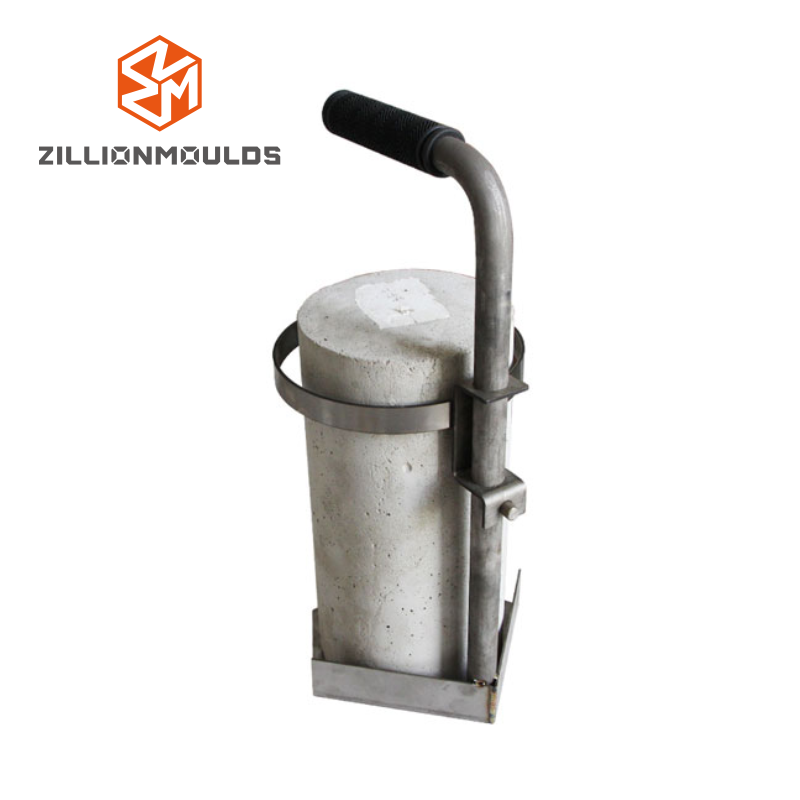

Specimen clamping tool ST-L150
| Model | Dimension(mm) Dia.×Height | Weight |
| ST-L150 | 150x300 mm | 1.67kg |
